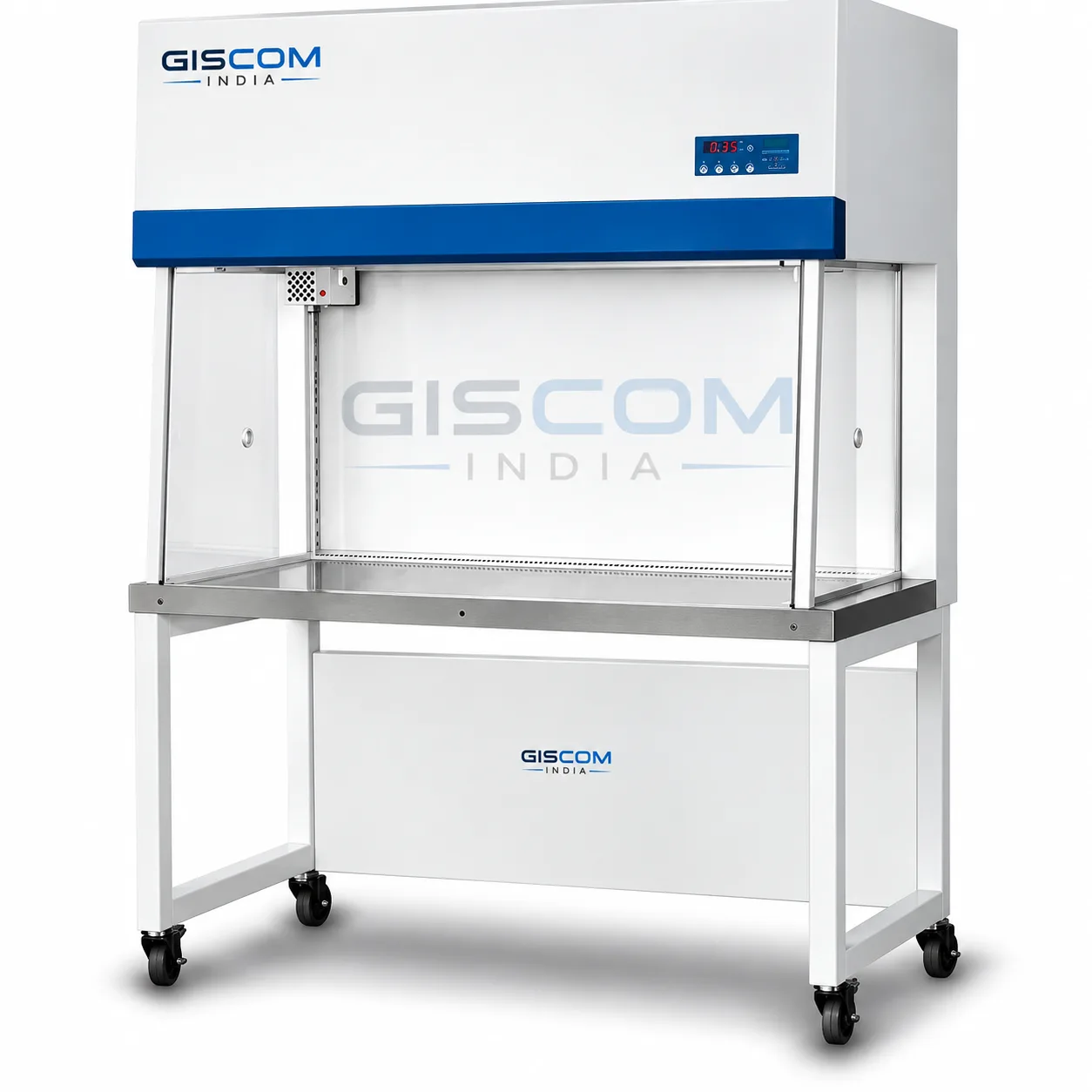

Laminar Air Flow Cabinet (Horigontal)

Designed so as to meet the requirements of US federal slandered 209B (BS5295) providing participle fee air to met class 100 (class Condition.) the cabinet are fabricated out of thick board duly sumnica clad interior surface are epoxy painted for its longer life. The work table is made of thick board which is S. steel clad at top. Side panels are made out of thick transparent plexi glass duly framed. The unit is fitted with pre-fitter and HEPA filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA (high efficiency particular air) filter having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger. Using dynamic machine, the blower and motor assembly is statically and dynamic machine, blower and motor assembly is statically and dynamically balanced ISI market motor of 1/5 H.P. capacity operates with minimum noises level. The working are is illuminates by flourescent lighting fifted to the unit. Height of working table provides comforts SIT down working position for the operator. To work on 220/230 volts AC supply.

Supplied completed withS. Steel with table top, HEPa Filters Pre filter and fluorescent illuminated, UV light & gas Birner

Working Size: 2”x2”x2” 3”x2”x2” 4”x2”x2” 6”x2”x2”
