Air Condenser

[table id=823 /]

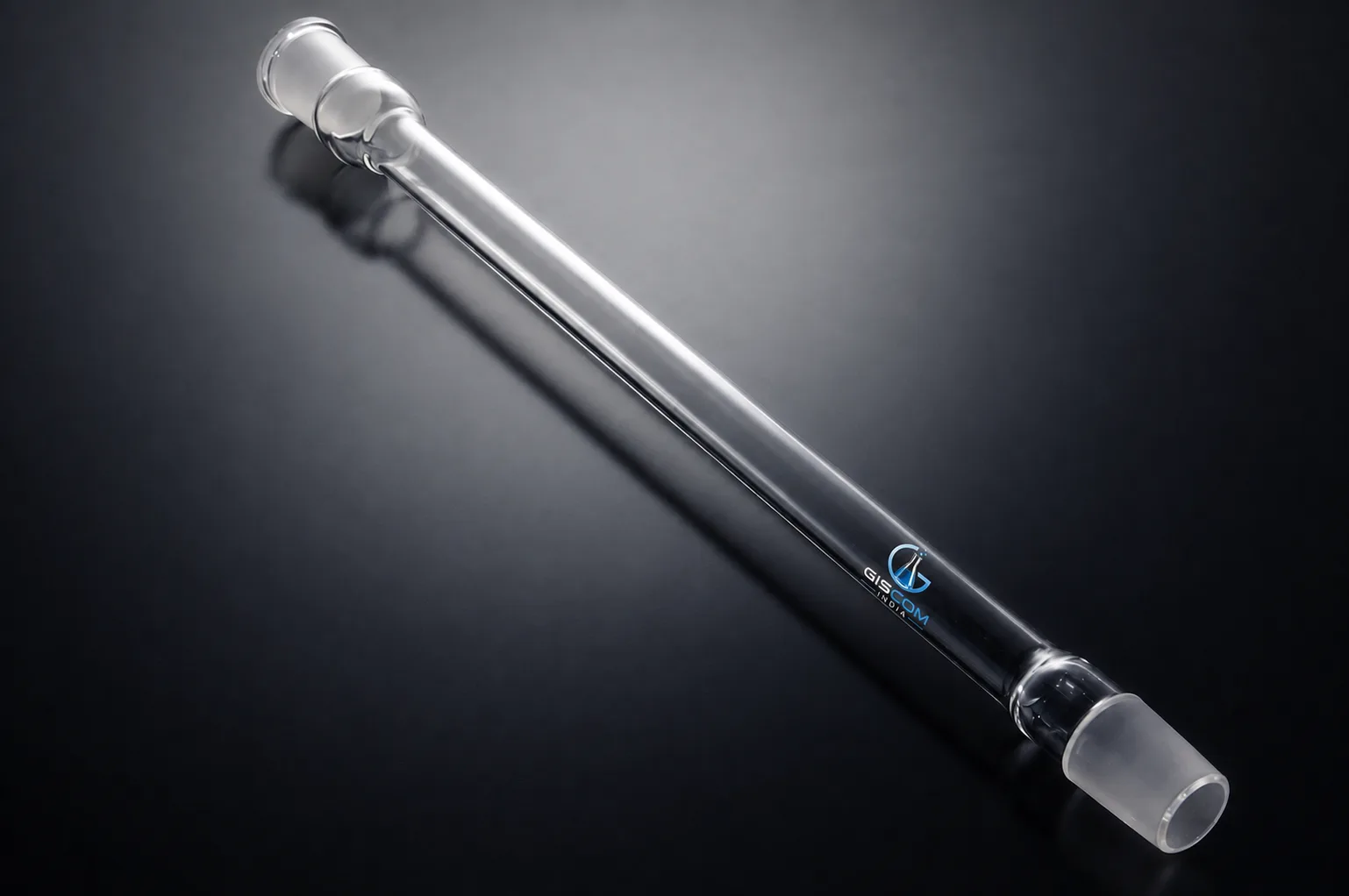

GISCOM Air Condenser is a straight, heat-resistant glass condenser that cools vapours using natural air convection. Commonly used in organic synthesis, distillation, and reflux procedures where water circulation is not required, it offers a clean and efficient solution for small-scale or water-sensitive operations. Its simple design, high durability, and maintenance-free operation make it an essential component in modern laboratories and industrial testing environments.

 Key Features

• High-grade Borosilicate Glass 3.3 for superior thermal and chemical resistance
• Efficient air-cooling mechanism for low- to medium-boiling-point solvents
• Uniform inner bore ensures consistent vapor flow and effective condensation
• Precision-ground glass joints for leak-proof and secure apparatus connection
• Scratch-resistant, non-porous surface for easy cleaning and long operational life
• Water-free operation eliminates the need for tubing and lowers maintenance costs
• Lightweight and robust design ideal for routine laboratory workflows
• Compatible with standard laboratory setups (24/29 or other joint sizes on request)

Material Specifications

• Material: Premium Borosilicate Glass 3.3
• Thermal Properties: High resistance to thermal shock, Low coefficient of thermal expansion (approx. 3.3 × 10⁻⁶ /°C)
• Chemical Resistance: Inert to most acids, solvents, and chemicals. Suitable for long-term use with organic compounds
• Mechanical Strength: High clarity and rigidity; stable under repeated heating cycles
• Standards Compliance: Manufactured in accordance with ISO 3585, DIN, and ASTM borosilicate glass standards

 Technical Specifications

• Joint Sizes: Standard 24/29. Other joint sizes available on request
• Length Options: Available in multiple lengths to suit different apparatus setups
• Tolerance & Accuracy: Precision-ground joints with tight dimensional tolerance
• Accessories: Compatible stoppers and adapters are available separately

Handling & Precautions

• Handle with care to avoid mechanical stress or sudden impacts
• Clean with mild laboratory detergents; avoid abrasive materials
• Can be safely autoclaved and used over standard heating equipment
• Avoid rapid temperature changes to prevent thermal shock
• Ensure joints are clean and lightly lubricated (if required) before assembly
• Store in a dry, cushioned space to prevent scratches and chipping

Applications

• Used in organic chemistry labs for air-cooled reflux and distillation
• Suitable for pharmaceutical R&D, chemical synthesis, and QC/QA labs
• Ideal for educational institutions, research centers, and industrial laboratories
• Preferred where water-based condensers are impractical or where water usage must be minimized
• Essential for moisture-sensitive reactions and small-scale heating operations
